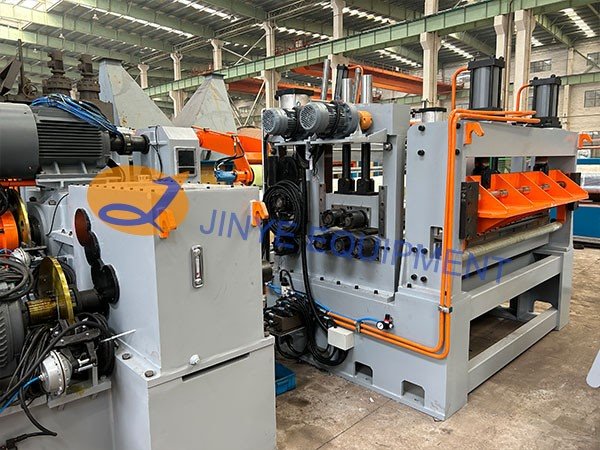

Aluminium Coil Slitting Kab
Kev piav qhia
Technical Parameters
Taw qhia
Cov ntawv txhuas, piv nrog cov pa roj carbon zoo li qub Yield lub zog Tsawg dua lossis sib npaug ntawm 270Mpa Tensile lub zog Tsawg dua lossis sib npaug li 465Mpa, muaj zog qis dua TS170-305Mpa thiab zoo dua qub, uas yuav tsum muaj cov tshuab slitting ntau dua. Yog tias koj xav tau Al Sheet Aluminium coil sheet slitting kab Chaw tsim tshuaj paus & Lub Sijhawm Oversea Partner, Jinye tiav cov cuab yeej yog koj xaiv zoo!
Feature ntawm aluminium ntawv
1. Cov ntawv txhuas muaj cov yas zoo, yooj yim rau kev ua tiav.
2. Cov ntawv txhuas yog lub teeb, nws qhov ceev yog 2.7g / cm3, txog ib feem peb ntawm cov ntawv hlau.
3. Lub zog ntawm cov ntawv txhuas tuaj yeem txhim kho los ntawm kev sib tw txias thiab annealing.
4. Aluminium ntawv muaj khoom Al2O3 tiv thaiv nto, yog los tiv thaiv corrosion.
5. Aluminium ntawv yog softer nyob rau hauv lub cev thiab du nyob rau hauv nto, yuav tsum tau ua kom zoo.
|
Qeb |
Purity |
Qib |
|
1 xxx series |
Al 99% |
1050, 1060,1100 |
|
2 xxx ib |
Cu (3-5%) |
2A16 (LY16), 2A06 (LY6) |
|
3 xxx ib |
Mn (1.0-1.5%) |
3003, 3004, 3005, 3A02, 3A21 |
|
5 xxx ib |
mg (3-5%) |
5052. 5005. 5083. 6754. 5A05 |
|
7 xxx ib |
Zn |
7075 |
Parameters ntawm 3 x 1600 Aluminium Slitting Kab
|
Slitting Kab 0 3 -3 X 1600 150mpm |
Tsis muaj |
|
Input steel coils |
ID508mm, 610mm, OD2000mm, coil hnyav 10T |
|
Input coil dav |
500-1600 hli |
|
Number ntawm slitting |
1 x 25 mm; 2 hli x 15 hli; 3 hli x 12 hli |
|
Ua tiav cov menyuam coils |
ID508mm, OD2000mm, coil hnyav 10T max |
|
Baby coil widths |
25mm -500 hli |
|
Slitting precision |
Slit dav ±{0}}.10mm; Camber ± 0.1 hli / m; bur 5% ntawm thickness; rov hump<0.5mm |
|
Main motors |
Slitter 75KW + Recoiler 90KW |
|
Slitter riam |
ID205 x OD330 x 10, SLD, HRC58-61 |
|
Recoiler mandrel |
Seamless mandrel φ508 hli |
|
xaiv tau |
Kev sib pauv ceev ceev slitters, unload turnstile |
|
Slitting ceev |
0-100-150mpm kho tau |
|
Kev teeb tsa |
Siemens PLC, Parker lossis Siemens Tsav, Vitory Valves |
Cov cim ntawm aluminium slitting kab
1. Cov qauv siv tshuab yog sib dua tab sis ntau dua precision.
2. Tsav lub cev muaj zog yog tsawg zog rau tib tus lej ntawm slitting.
3. Cov ntaub ntawv winding, zaj duab xis lossis ntawv lamination muaj nyob online.
4. Seamless mandrels yog siv los tiv thaiv cov ntawv txhuas sab hauv lub voj voog.
5. Tag nrho cov hlaws hlais yog PU coated.
6. Slitting cov cuab yeej tshwj xeeb tsim rau Al coil slitting.
7. Cov khoom siv khib nyiab yog cov nruas ntsug, yooj yim rau kev tso tawm.
8. Overarm ncej recoiling separator.
9. Siv hom nro thiab phaj hom tensioner muaj.
10. Kev kub ceev slitting thiab recoiling zoo zoo.
