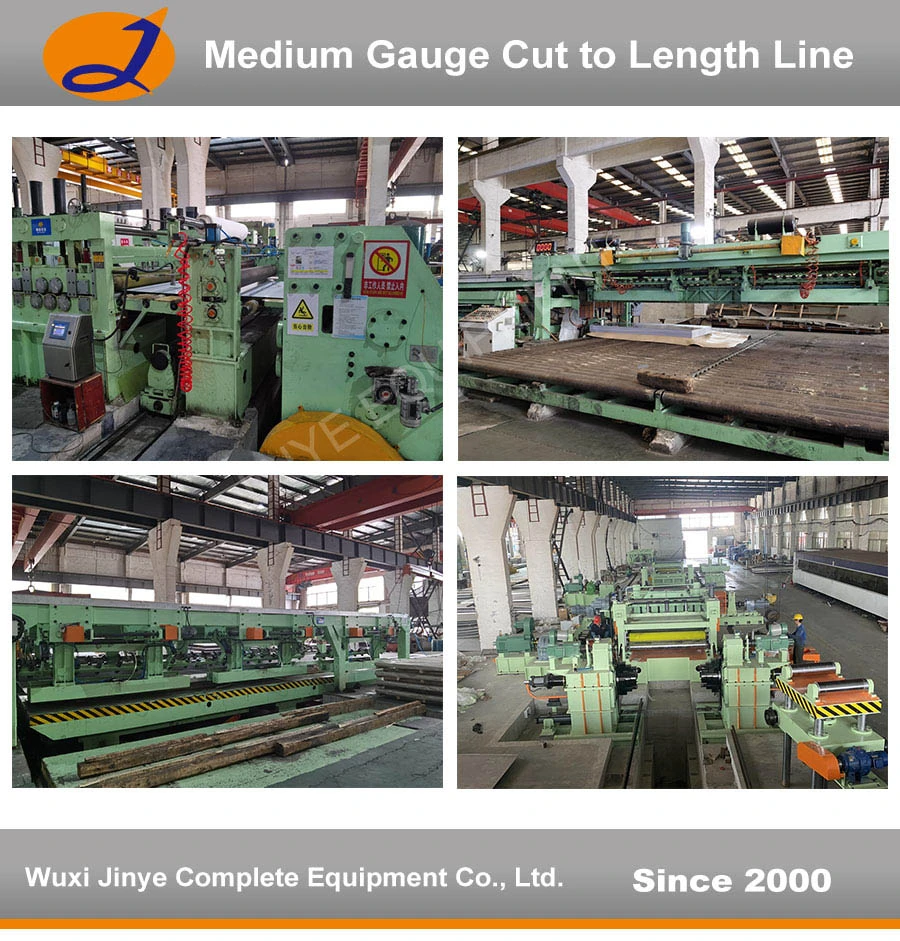

Nruab nrab Gauge Txiav rau Length Kab
Kev piav qhia
Technical Parameters
Taw qhia
Jinye Ua tiav Cov cuab yeej ua kom muaj kev kub ceev txiav kom ntev kab rau nruab nrab ntsuas cov ntawv txiav. Qhov nruab nrab gauge Hlau ntawv txiav mus rau qhov ntev kab feem ntau yog rau coil steel ntawv ntawm 3 mus rau 8 hli thickness, Coil ntawv cov khoom yuav kub dov (HR, HRC, HRS), txias dov (CR, CRC, CRS), Galvanized ntawv (GI) los yog Stainless hlau ntawv (SUS, STS, SS) hauv qab 6 hli. Coil daim ntawv dav sib txawv ntawm 1250mm, 1500mm, 1600mm, 1800mm, 2000mm, nws nyob ntawm cov neeg siv khoom coil cov ntaub ntawv.
Technical Parameters
|
Nruab nrab gauge txiav mus rau qhov ntev |
Tsis muaj |
|
Hlau phaj thickness (mm) |
{{0}}mm, 1.5-6.0mm, 2 -8mm |
|
Hlau coil phaj dav (mm) |
1250mm, 1600mm, 2000mm |
|
Uncoiling load (MT) |
20T, 25T, 30T |
|
Kab ceev (mpm) |
40m / min, 60m / min |
|
Txiav precision (mm) |
± 0.50mm / 2m ntev |
|
Leveling precision |
Tsawg dua lossis sib npaug ± 2mm / m2 |
|
Txiav burrs |
Tsawg dua los yog sib npaug li 5% ntawm thickness |
|
Stacking precision |
Tsawg dua lossis sib npaug rau 1.0mm hauv qhov dav, Tsawg dua lossis sib npaug li 1.5mm hauv qhov ntev |
|
Tag nrho lub zog (KW) |
150KW ~ 180KW ~ 200KW lub zog |
|
Thaj tsam (L x W) |
30m x 10m, 40m x 15m |
Kev sib xyaw
|
1. Coil khaws lub eeb |
2. Coil loading tsheb |
|
3. Ib leeg mandrel uncoiler nrog nraub qaum |
4. Coil lub taub hau traction xovxwm cov menyuam |
|
5. Lub taub hau ncaj ncaj yob thiab shoveling hniav |
6. Ob chav pinch yob + 15 yob 4hi leveler |
|
7. Pit voj |
8. Nias rollers thiab sab qhia |
|
9. Servo ntev feeder (9 yob) |
10. Pneumatic ceev shear |
|
11. Convey siv |
12. Stacker |
|
13. Tso zis tsheb lossis lub rooj yob |
14. Hydraulic system |
|
15. Pneumatic system |
16. Hluav taws xob tswj qhov system |
Product Description
1. Pit Loop: Tus 2+15 leveler tsis tu ncua ua haujlwm thiab xa cov hlua hlau mus rau hauv lub qhov los txhawb kev noj qab haus huv servo tom qab thiab ceev txiav txiav, txoj kev no, tsis muaj kev sib tw dov ntawm lub strip.
2. Xovxwm rollers thiab sab qhia: Kab rov tav thiab ntsug qhia steel sawb ntawm qhov nruab nrab ua ntej txiav.
3. 2+5+2 Servo Pinch Feeder: Txhawm rau ntsuas steel phaj ntev thiab tawm tswv yim rau PLC los tswj cov shearing, lub sijhawm no theem ntawm daim ntawv dua
4. Shear: tuaj yeem ua servo tsav lossis ceev hydraulic shear, pib-nres hom, muaj zog thiab ua haujlwm siab.
5. Cov ntawv tso tawm: Siv txoj siv thauj khoom thauj cov ntawv txiav mus rau nws pib stacker, cov caj npab txais tau txais daim ntawv thiab qhib caj npab kom txog thaum nkag sensor qhia PLC tias daim ntawv xaus tau dhau mus rau txais caj npab, daim ntawv ntog nrog kev pab los ntawm cua tshuab cushion, txiab nqa lub rooj tau txais daim ntawv thiab cia li nqis mus thaum nplooj ntawv qhov siab nres correlation signal.the stacking dav thiab ntev yog kho raws li ib daim ntawv dav thiab ntev.
Peb Qhov Zoo
Peb muab cov kev xaiv customized, cov neeg siv khoom qhia lawv cov khoom siv raw, cov ntawv tiav specification, muaj peev xwm ntau lawm, precision tolerances, thiab lwm yam, peb yuav muab tus neeg ua tiav cov lus pom zoo ntawm tag nrho Txiav rau cov kab ntev rau nruab nrab ntsuas.
