Steel Coil Sheet Txiav rau Length Kab
Kev piav qhia
Technical Parameters
Taw qhia
Ib daim ntawv steel coil txiav mus rau txoj kab ntev yog lub tshuab siv hauv kev lag luam hlau los txiav cov ntawv steel coil rau hauv qhov ntev. Cov txheej txheem ntawm Txiav rau Ntev Tshuab no feem ntau siv rau ntau yam kev siv xws li kev tsim khoom, kev tsim kho, tsheb, thiab lwm yam. Yog xav paub ntxiv Steel Coil sheet Txiav rau Length Kab (lub teeb ntsuas 0.3-3 x 1250) cov ntaub ntawv, thov hu rau peb!
Technical Parameters
|
(0.3-3)x1250 Kev kub ceev txiav mus rau kab ntev |
Tsis muaj |
|
Hlau phaj thickness (mm) |
{0}}3 -3.0mm |
|
Hlau coil phaj dav (mm) |
300-1250 hli |
|
Uncoiling load (MT) |
15T, 20T |
|
kab ceev (mpm) |
80m / min |
|
Txiav precision (mm) |
± 0.50mm / 2m ntev |
|
Daim ntawv ntev |
800-4000 hli |
|
Leveling precision |
Tsawg dua lossis sib npaug rau ± 1.0mm/m2 |
|
Txiav burrs |
Tsawg dua los yog sib npaug li 3% ntawm thickness |
|
Stacking precision |
Tsawg dua lossis sib npaug rau 1.0mm hauv qhov dav, Tsawg dua lossis sib npaug li 1.5mm hauv qhov ntev |
|
Tag nrho lub zog (KW) |
150 KW TSI |
|
Thaj tsam (LxW) |
25 mx 10 m |
Product Description
1. Coil loading: Coil loading tsheb siv steel kauj los ntawm kauj npaj eeb thiab xa mus rau Ib Leeg Mandrel uncoiler, lub mandrel yog hydraulic expansion nrog rov qab nro mechanism.
2. Coil lub taub hau qhib: Xovxwm rau cov menyuam ntawm lub uncoiler nias rau ntawm lub coil sab saum toj kom tuav lub kauj kom tsis txhob xoob, coil lub taub hau tev cov hniav ntxig rau lub taub hau coil, coil taub hau ncaj yob nias cia kom lub taub hau taub hau ncaj nraim mus rau hauv pinch rollers.

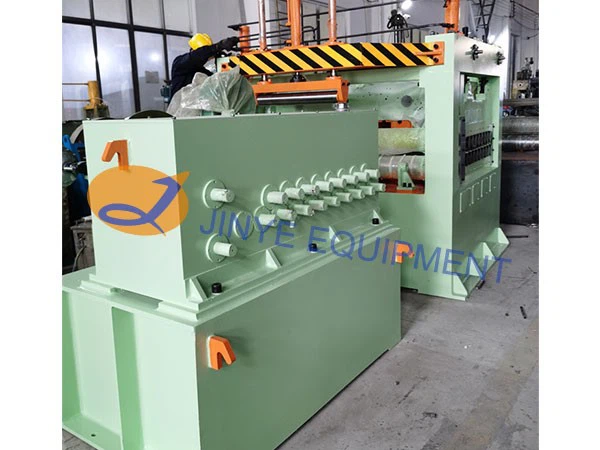

3. Pinch feeder thiab 15 rolls leveler: Raws li cov khoom siv tseem ceeb ntawm txoj kab txiav mus rau qhov ntev, 4hi leveler muaj 7 tshaj 8 leveling rollers, nrog ob txheej txheej thaub qab rolls brackets kom ntseeg tau tias qhov kev sib tw nruj thiab flatness, sab saum toj rollers nias los ntawm cycloid. lub cev muaj zog & cab pas nrig, tsav ib feem yog lub cev muaj zog, reducer, faib gearbox thiab tsav shafts, lub bearings lubrication yog concentrated los ntawm phau ntawv twj tso kua mis thiab roj distributor.
4. Pit Loop: Lub leveler tsis tu ncua ua haujlwm thiab xa cov hlua hlau mus rau hauv lub qhov los txhawb kev noj qab haus huv servo tom qab thiab ceev txiav txiav, txoj kev no, tsis muaj kev sib tw dov ntawm lub strip.
5. 2+2 Servo Pinch Feeder: Txhawm rau ntsuas steel phaj ntev thiab tawm tswv yim rau PLC los tswj cov shearing, PU coated sab sauv yob nce kev sib txhuam los xyuas kom meej qhov ntev noj.
Kev taw qhia ntxiv kom pom cov khoom txheeb ze hauv qab no
Kev sib xyaw
|
1. Coil khaws lub eeb |
2. Coil loading tsheb |
|
3. Ib leeg mandrel uncoiler nrog nraub qaum |
4. Coil lub taub hau traction xovxwm cov menyuam |
|
5. Lub taub hau ncaj ncaj yob thiab shoveling hniav |
6. Ob chav pinch yob + 15 yob 4hi leveler |
|
7. Pit voj |
8. Nias rollers thiab sab qhia |
|
9. Servo ntev feeder (4 yob) |
10. Pneumatic ceev shear |
|
11. Convey siv |
12. Stacker |
|
13. Tso zis tsheb lossis lub rooj yob |
14. Hydraulic system |
|
15. Pneumatic system |
16. Hluav taws xob tswj qhov system |
Khoom siv
Cov Hlau Chev Sheet Txiav rau Length kab tshuab muaj ntau yam ua haujlwm ua ke kom ua tiav qhov tseeb thiab meej. Cov khoom no feem ntau muaj xws li decoiler, straightener, feeder, shearing unit, thiab stacker. Lub decoiler unwinds steel kauj, thaum lub straightener xyuas kom meej cov khoom yog tiaj thiab ncaj ua ntej pub rau hauv lub shearing unit. Lub tsev shearing tom qab ntawd txiav cov ntawv steel coil rau hauv qhov ntev uas xav tau, thiab cov stacker sau thiab muab cov ntawv txiav rau kev ua haujlwm ntxiv lossis kev thauj mus los.
