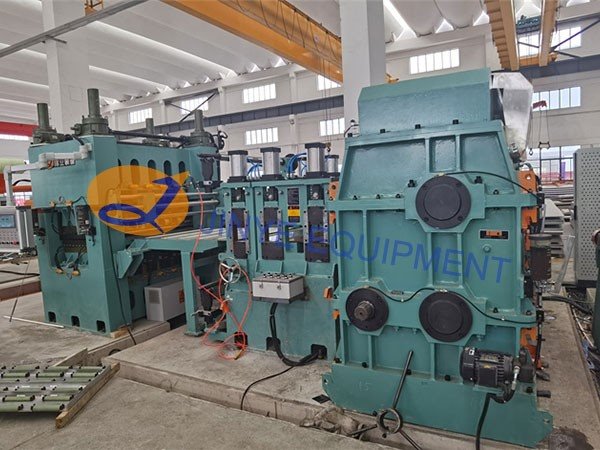

Steel Chev Flying Shear Txiav rau Length Kab
Kev piav qhia
Technical Parameters
Taw qhia
Daim ntawv thov ntawm CR Steel Coil Flying Shear Txiav rau Length Kab yog qhov tshwj xeeb tshaj yog muaj txiaj ntsig zoo thaum xav tau cov nplooj ntawv steel ntawm qhov ntev tshwj xeeb, vim nws tshem tawm qhov xav tau ntawm phau ntawv txiav lossis siv ntau lub tshuab. Nws tso cai rau kev ua haujlwm tau zoo thiab tsis siv neeg, txuag lub sijhawm thiab nqi zog.
Technical Parameters
Input Raw Materials, CR, GI, PPGI Coils:
|
Tsis muaj. |
Yam khoom |
Tsis muaj |
|
1 |
Khoom siv |
CR, GI, PPGI |
|
2 |
Coil phaj thickness |
{0}}3-3.0mm |
|
3 |
Coil phaj dav |
500-1600 hli |
|
4 |
Coil sab nraud txoj kab uas hla |
Tsawg dua los yog sib npaug rau Φ2000mm |
|
5 |
Coil puab txoj kab uas hla |
Φ508mm, Φ610mm |
|
6 |
Max coil hnyav |
20T |
|
7 |
Mechanic zog |
Tensile zog σbTsawg dua lossis sib npaug li 600N / mm2 |
Cov khoom tiav, Stainless Hlau Sheets:
|
Tsis muaj. |
Yam khoom |
Tsis muaj |
|
1 |
Txiav ntev |
500-3000mm/6000mm |
|
2 |
Txiav ntev kam rau ua |
L{{0}}m Tsawg dua lossis sib npaug ±0.25mm (2.0mm) |
|
3 |
Diagonal ntev kam rau ua |
L{{0}}m Tsawg dua lossis sib npaug ±0.5mm (2.0mm) |
|
4 |
Leveling precision |
Tsawg dua lossis sib npaug ± 1.2mm / m2 |
|
5 |
Stacking qhov siab |
suav nrog cushion ntoo 700mm, max 5T. |
Tshuab Parameters
|
Tsis muaj. |
Yam khoom |
Tsis muaj |
|
1 |
Txiav ceev |
Daim ntawv ntev (mm) txiav lub sijhawm (pcs / min) |
|
200 hli 180pcs |
||
|
500 hli 160pcs |
||
|
800mm 100pcs |
||
|
2000mm 40pcs |
||
|
4000mm 20 pcs |
||
|
6000mm 13 pcs |
||
|
2 |
Xov xov ceev |
0~15m/min |
|
3 |
Txiav kom muaj nuj nqis |
2000mm x 2.0mm Tsawg dua lossis sib npaug li 40pcs / min |
|
4 |
Tus naj npawb ntawm stacking |
Dual Stackers hloov mus rau ib leeg |
|
5 |
Tag nrho lub zog |
~ 420 Kw |
|
6 |
Tsav cov motors |
Lub cev muaj zog: AC30KW |
|
Fine 6Hi theem: AC110KW |
||
|
Ntev feeder: AC11KW |
||
|
Fais fab tuag: AC110KW |
||
|
Hydraulic chaw nres tsheb: AC11KW |
||
|
7 |
Tswj hom |
Servo tswj, PLC |
|
8 |
Qty ntawm cov neeg ua haujlwm |
Tus kws kho mob 1 tus neeg, cov neeg ua haujlwm 2-3 tus neeg |
|
9 |
Thaj tsam thaj av |
L50m×W10m |
Kev sib xyaw
|
1. Coil khaws lub eeb |
2. Coil loading tsheb |
|
3. Ib leeg mandrel uncoiler nrog nraub qaum |
4. Coil lub taub hau traction xovxwm cov menyuam |
|
5. Lub taub hau ncaj ncaj yob thiab shoveling hniav |
6. Ob chav pinch yob + 6Zoo Zoo Leveler |
|
7. Muab ob npaug rau yob feeder |
8. Rotary Fly Shear |
|
9. 4 theem convey siv |
10. Dual Stackers |
|
11. Dual tso zis tsheb lossis yob rooj |
12. Hydraulic system |
|
13. Pneumatic system |
14. Hluav taws xob tswj qhov system |
Product Advantage
Peb Rotary Shear Flying txiav mus rau ntev kab yog txais tos los ntawm Steel Sheet Processing Centers uas txiav txawv lengths ntawm steel los xij nyob rau hauv high efficiency.
1. Thaum nws los txog rau txias dov hlau, galvanized steel, xim hlau coils, feem ntau nyias thickness ntev ntev yuav tsum tau ua tiav cov nplooj ntawv tiaj tus ntawm ntau yam luv luv, pom tseeb rotary ya shear yog qhov kev xaiv zoo los muab cov khoom txaus.
2. Tsis tas li ntawd, cov yoov txiav yam tsis nres cia cov ntawv hlau txuas ntxiv mus rau pem hauv ntej, tsis muaj caij nyoog rau cov menyuam tawm ntawm cov ntawv.
3. Txhawm rau tiv thaiv daim ntawv saum npoo, tag nrho cov xaim xaum yob thiab qhov chaw ntawm lub tshuab yog them nrog polyurethane roj hmab, thiab zaj duab xis thiab / lossis ntawv laminating yog avaible.
4. Lub leveler tuaj yeem yog 4High lossis 6High, nyob ntawm qhov flatness precision yuav tsum tau los ntawm cov khoom tiav daim ntawv thov, raws li peb paub, ntau daim ntaub ntawv xav tau siab dua precision 6High leveler tshuab.
5. Cov neeg ua haujlwm tuaj yeem saib txhua yam ntawm lub vijtsam kov thiab saib cov ntxaij vab tshaus thiab yooj yim nkag mus rau cov kev txwv thiab ua haujlwm cov kab ua haujlwm. Kev tswj hluav taws xob yog qhov ntse thiab yooj yim.
